Recording Settings

OvenMediaEngine Enterprise has had recording functionality since version 0.12.3.0-1, but requires version 0.16.5.0-1 or later to use the Automated Recording.

OvenMediaEngine's Recording feature allows you to record all or selected tracks in Live, and you can utilize the StreamMap option to automatically record based on predefined conditions or split the recording into files based on scheduled options based on system time.

Check Recording Activation

Recording Settings

Recording Settings 페이지에서 각 Application에서 Stream 녹화를 위한 File Publisher의 활성화 상태와 구성 세부 정보를 확인할 수 있습니다.

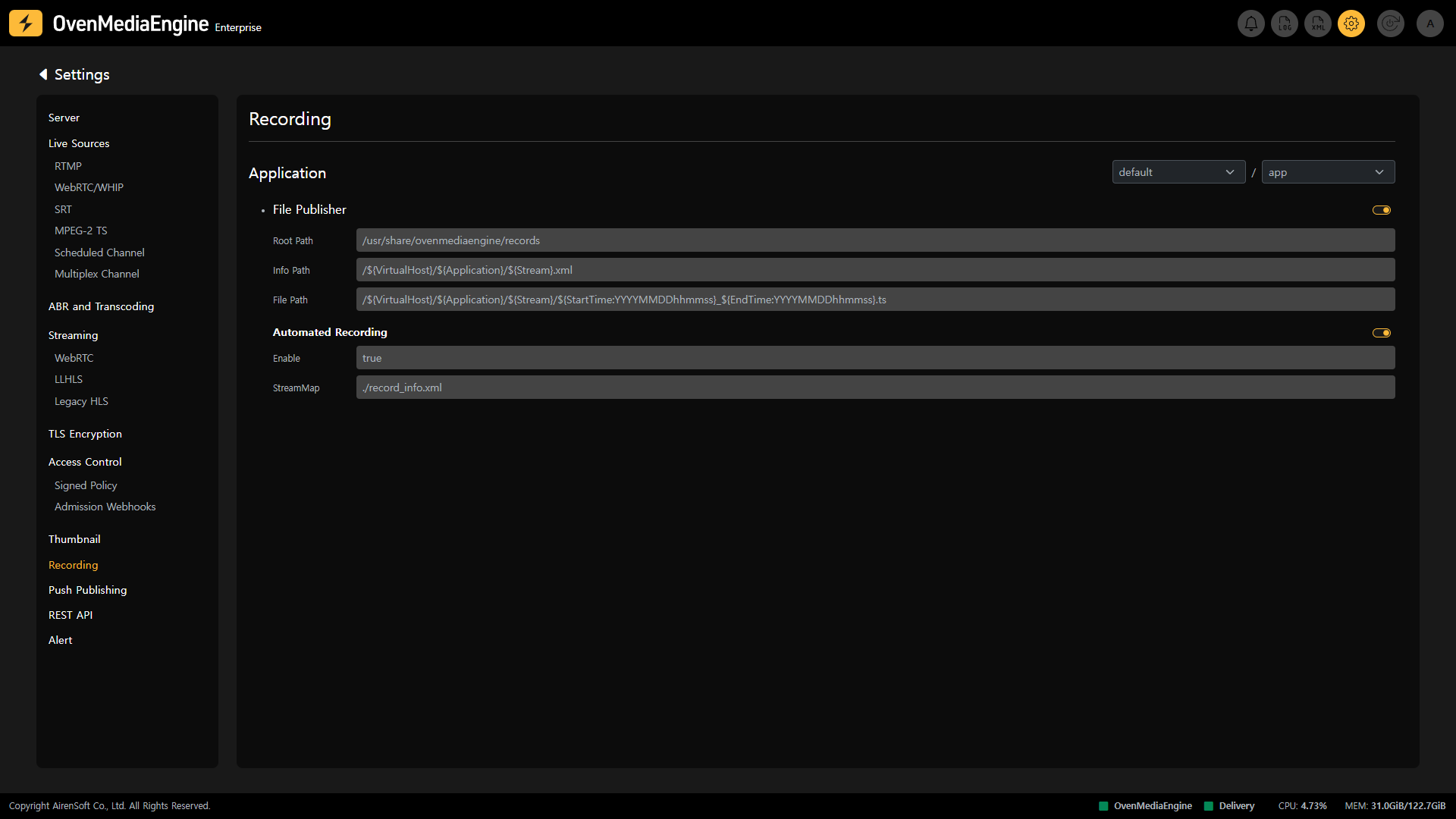

On the Recording Settings, you can check the activation status and configuration details of the File Publisher for stream recording in each Application.

View File Publisher Information

• Root Path: Optional parameter used when requesting a recording via the API if a relative path is required.

• Info Path: Path to an XML file containing recording options and information about the recording file.

• File Path: Shows the path where recorded files will be saved and how recorded file names will be structured.

View Automated Recording Information

• StreamMap: OvenMediaEngine Enterprise can automatically start and stop recording if there is an ingress stream that matches the predefined conditions configured in StreamMap. The tab displays information related to the path and file name of the StreamMap.

Detailed Guide: https://airensoft.gitbook.io/ovenmediaengine/recording
